6.1   Wheel Rim Example

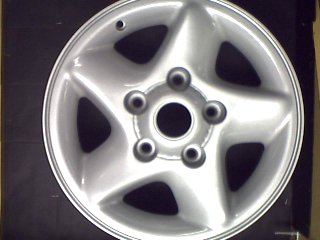

Figure 6.1 Newly Captured Image.

The problem is: assuming we have a newly captured image in Figure 6.1, let us match it against the existing master library and see if there is a match. There are 100 images in 25 quadruplets. The data is stored at “.\ex_wheel\” folder.
