13.4 1:N Matching

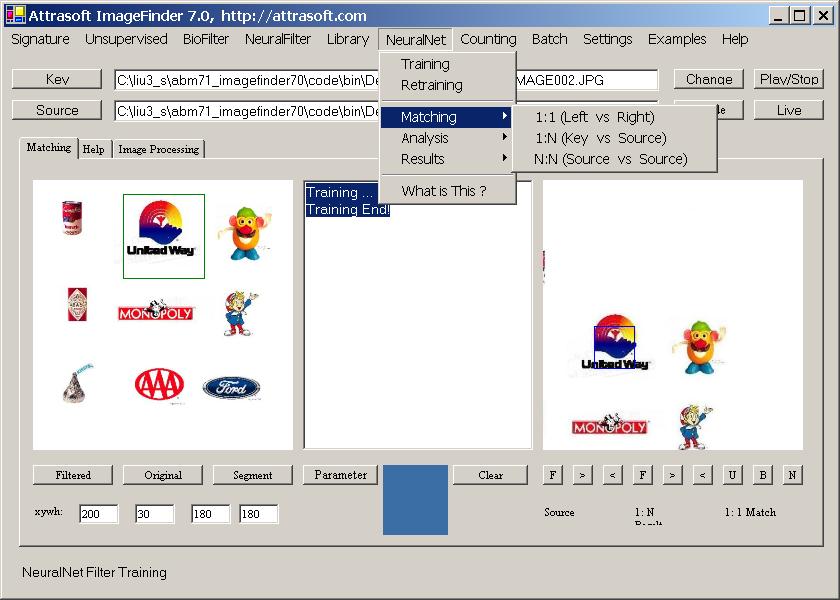

Figure 13.3 Neural Net Training and Matching.
To make a 1:N Matching:
-
Click the “Source” button to select directory, “.\input_auto_track”; then select any file in this folder;
-
Click “NeuralNet/Matching/1:N (Key vs Source)” to make a 1:N Matching (See Figure 13.3).
The output will look like this:
ID Name Path Score X Y W H R
IMAGE002 IMAGE002.JPG C:\...\input_Auto_track\ 74240 204 42 162 126 0
IMAGE002a IMAGE002a.JPG C:\...\input_Auto_track\ 70080 228 42 162 126 0
IMAGE002b IMAGE002b.JPG C:\...\input_Auto_track\ 71616 240 30 162 126 0
IMAGE002c IMAGE002c.JPG C:\...\input_Auto_track\ 72640 246 66 162 126 0
IMAGE002d IMAGE002d.JPG C:\...\input_Auto_track\ 70720 246 120 162 126 0
IMAGE002e IMAGE002e.JPG C:\...\input_Auto_track\ 71104 138 150 162 126 0
IMAGE002f IMAGE002f.JPG C:\...\input_Auto_track\ 108096 84 288 162 126 0
IMAGE004 IMAGE004.JPG C:\...\input_Auto_track\ 70080 12 24 162 126 0
IMAGE006 IMAGE006.JPG C:\...\input_Auto_track\ 67008 378 204 162 126 0
IMAGE008 IMAGE008.JPG C:\...\input_Auto_track\ 67200 48 60 162 126 0
